Hard Hats

Hard hats certified to ANSI Z89.1, in Type 1 for top impact and Type 2 for top and lateral impact. Class E models are tested to 20,000 volts for electrical work. Choose full brim for sun and rain, cap style for tight spaces, or vented for heat. Custom logo printing available, and bulk hard hats ship with volume pricing.

Hard Hats buying guide
Hard Hats

Outdoor crews working through the summer usually pick the vented full brim hard hat for the shade and the airflow together.

Around live conductors, step up to a Class E dielectric safety helmet.

Slotted shells take hard hat accessories — visors, winter liners, sun brims and chin straps.

In sustained noise, cap mounted ear muffs clip straight into the same 30mm slots.

Curious about what makes our helmets 11° cooler?They’re built with Koroyd, a groundbreaking material that outperforms traditional EPS foam. Learn About Koroyd®
The GE Standard for Helmet SafetyEvery helmet meets GE’s protocols and passes multi-stage testing for traceable quality.
Read More About Our Helmets
Safety StandardsAdvanced materials and rigorous testing combine with breathable, fatigue-reducing fit to provide reliable head protection that performs when it matters most.


Cleaning & DecontaminationThe ionic+® surface simplify decontamination workflows.

Quick guide

Hard hats: ANSI Z89.1 Type, Class and how to choose

The four GE PPE hard hats in this collection are Type 1 HDPE shells certified to ANSI/ISEA Z89.1-2014, in cap style or full brim, vented Class C or non-vented Class E and G. Use the guide below to match the rating to the hazard and the brim to the site.

Key takeaways

  • Type is impact, Class is voltage. Type 1 covers blows to the top of the head; Class E is proof-tested at 20,000 V, Class G at 2,200 V, Class C not at all.
  • Vents mean Class C. The vented GH326 and GH328 run cooler but give no electrical protection. Near live conductors, use the GH327 or GH329.
  • Cap style or full brim. The cap style GH326 and GH327 have a front peak and 30 mm earmuff slots; the full brim GH328 and GH329 shade the face, neck and shoulders.
  • All four are Type 1. For side impact, step up to a Type 2 Koroyd safety helmet, the GH500 or GH501.
  • Logo printing is available. All four take custom logo printing, from a 12-piece minimum.

Standards that apply

ANSI/ISEA Z89.1-2014
U.S. industrial head protection: Type 1 or 2 for impact, Class E, G or C for electrical protection.
Proof test
The shell must withstand 2,200 V (Class G) or 20,000 V (Class E) without breaking down. Our Class E hats are also listed Class G.
OSHA 29 CFR 1910.135 · 1926.100
Head protection that meets ANSI/ISEA Z89.1 or is equally effective, in general industry and construction.
NFPA 70E
Class E is a proof test of the shell, not a license to touch live parts. Follow 70E and your arc-flash assessment.

Compare the hard hats in this collection

Hard hatBrimTypeClassVentedEarmuff slotsNotes

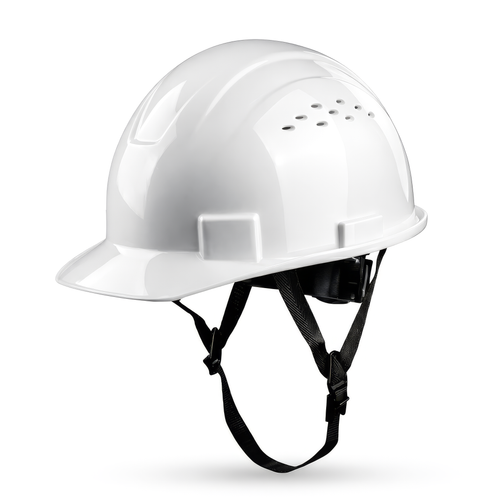

GH326 · Vented cap styleCap styleType 1CYesYes, 30 mmWidest color range, including Hi-Vis Lime

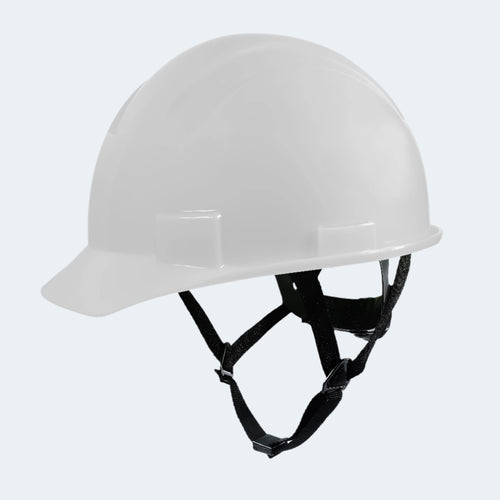

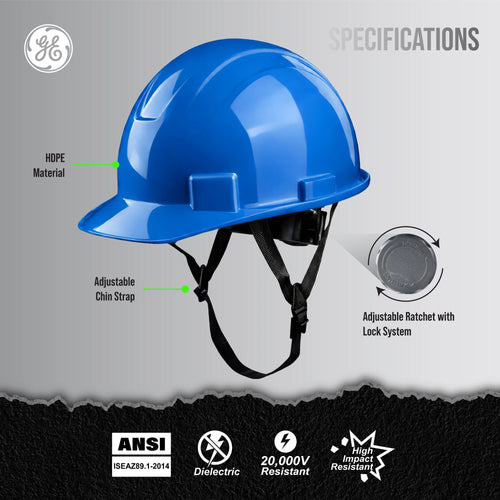

GH327 · Cap style, dielectricCap styleType 1E and GNoYes, 30 mmThe only Class E hard hat with earmuff slots

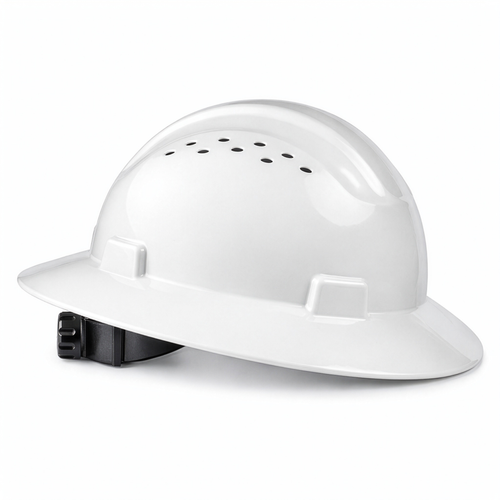

GH328 · Vented full brimFull brimType 1CYesNoWhite only; brow pad

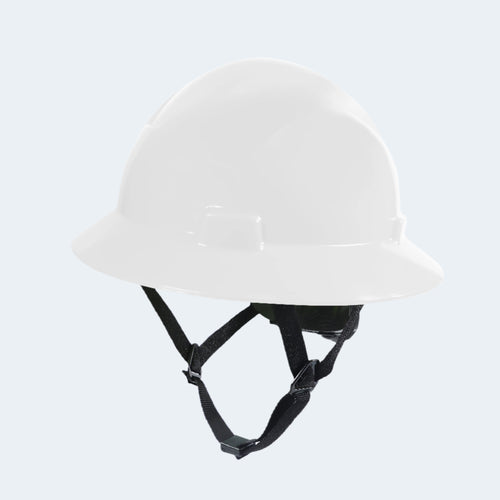

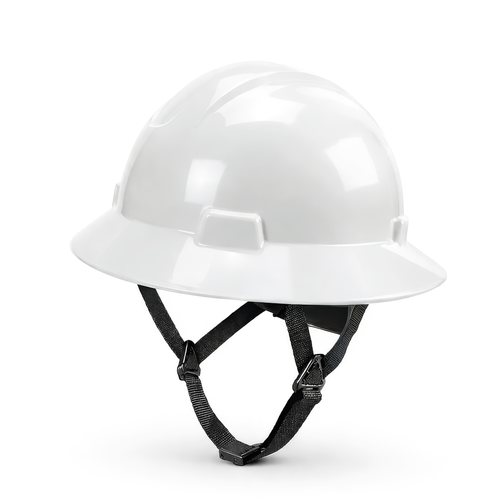

GH329 · Full brim, dielectricFull brimType 1E and GNoNoFor outdoor electrical and line work

All four have a 100% HDPE shell and an adjustable ratchet suspension, certified to ANSI/ISEA Z89.1-2014, from each product's specification sheet and our Safety Standards reference.

Type and Class: where each hard hat sits

  1. Class CNo electrical ratingGH326 GH328
  2. Class G2,200 V proof testGH327 GH329
  3. Class E20,000 V proof testGH327 GH329
  4. Type 2Top and lateral impactSee safety helmets

Every hard hat here is Type 1. The Type 2 GH500 and GH501 are Koroyd safety helmets, listed under safety helmets.

What the hard hat is made of

HDPE shell

High-density polyethylene: light, tough and resistant to many chemicals. The shell of all four hard hats, and of our Class E dielectric models.

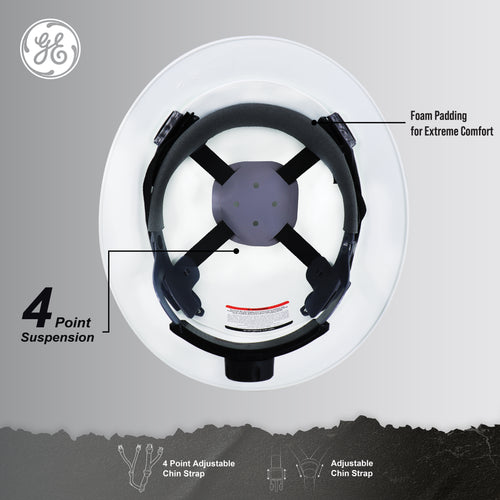

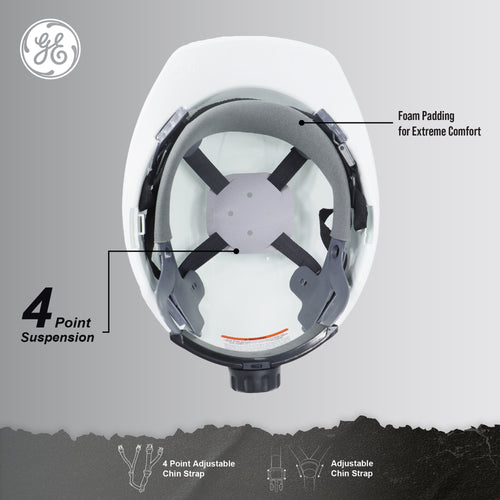

Ratchet suspension

A 4-point nylon suspension holds the shell away from the head. The ratchet adjusts fit without taking the hard hat off.

Logo printing

Your logo on the shell in up to 4 colors, from a 12-piece minimum, approved from a digital proof.

Which hard hat for which job

Construction

Top-impact hazards outdoors: the vented GH328 for sun and heat, or the GH326 with cap-mounted earmuffs.

Oil and gas

Non-vented Class E where electrical exposure is possible; vented Class C for heat on open sites.

Mining

Class E and G hard hats for electrical hazards, alongside Type 2 helmets for side impact.

Manufacturing

Class C cap style in plants and warehouses, color-coded by trade with the GH326.

A hard hat protects the head from falling objects and, in Class E, from contact with energized conductors. This collection has four GE PPE hard hats, all Type 1 HDPE shells certified to ANSI/ISEA Z89.1-2014: cap style and full brim, each in vented Class C or non-vented Class E and G. Below: Type and Class, brims, fit, replacement and logo printing.

Type 1 or Type 2, and why it matters

ANSI Z89.1 splits head protection into two types. Type 1 is tested for impact to the top of the head only. Type 2 is tested for impact to the top and the sides, front and back.

Type 1 covers the classic hazard, which is something dropped from above. Type 2 covers what actually injures people more often on modern sites: a fall from height, a slip into a fixed object, a swinging load, a vehicle strike. If your risk assessment includes working at height or moving plant, Type 2 is the honest answer.

Every hard hat in this collection is Type 1. Type 2 helmets usually add an energy-absorbing liner and a chin strap. Our GE PPE safety helmets use a Koroyd core, a welded tube structure that crushes on impact to absorb energy rather than transmitting it; the GH500 and GH501 are the Type 2 models.

Electrical class ratings

Class G, general, is tested to 2,200 volts. Class E, electrical, is tested to 20,000 volts. Class C, conductive, offers no electrical protection at all, which is what vented shells are, because the vents are holes.

If anyone on the crew could contact an energized conductor, they need Class E and they cannot wear a vented shell. That is the trade-off at the center of most hard hat decisions, because vented shells are markedly cooler and Class E shells are not. Here, the GH327 and GH329 are rated Class E and Class G; the GH326 and GH328 are vented Class C.

Full brim, cap style, or vented

Full brim runs all the way around. It sheds rain and sun off the neck and ears, and it is the standard choice for outdoor work in the South. The brim can catch in tight spaces and on ladders.

Cap style has a front peak only. Better in confined space, easier under a welding hood, and the standard where a face shield or welding shield mounts to the helmet.

Vented shells move air across the head and reduce heat load noticeably. They are Class C, so no electrical protection. On a non-electrical site in Florida heat, vented is usually the right call. It is the difference between a helmet worn all day and one taken off at noon. The GH328 pairs vents with a full brim.

Suspension and fit

The suspension is what does the work. It holds the shell away from the skull so the shell can deform without touching the head. A four-point suspension is standard. Six-point spreads load better and is worth the small extra cost for all-day wear.

Ratchet adjustment beats pin-lock for anything worn by more than one person, because it adjusts in a second without taking the helmet off. All four hard hats here use one. Check that the shell sits level and the suspension leaves a clear gap at the crown.

Accessories and slots

Standard 30mm accessory slots on the shell sides take ear muffs, face shields, visors and lamp brackets. If your crew needs hearing protection or a face shield, buying slotted helmets means one item goes on the head instead of three. The cap style GH326 and GH327 take the GM453 cap-mounted earmuff; the full brim GH328 and GH329 have no earmuff slots.

Winter liners, sweatbands, chin straps and reflective stickers are cheap additions that raise the odds the helmet actually gets worn. Most items in our hard hat accessories are made for the GE PPE Koroyd helmets, so check the fit list on each product page.

Replacement intervals

Replace the suspension every twelve months and the shell every five years from the date of manufacture, which is stamped inside the shell. Replace any helmet immediately after an impact, even if it looks fine, because the energy-absorbing structure is designed to be sacrificial.

UV exposure ages the shell. If the surface has gone chalky or the color has faded noticeably, it is past its useful life regardless of what the date stamp says.

Hard hats by industry

On construction sites, vented Class C hard hats suit hot outdoor work with no electrical exposure.

In electrical and utility work, use Class E only, such as the GH329 full brim for line work.

In oil and gas, choose non-vented Class E where electrical exposure is possible and vented Class C for heat on open sites.

In agriculture, a full brim shades the face and neck through long days outside.

Buying hard hats in bulk

Hard hats are the most visible item in a PPE program and the one most worth branding. We run custom logo printing from a 12-piece minimum, which means a small contractor can put their name on a case rather than a container.

Standardize on one Type and Class per site where you can. Mixed ratings across a crew is the fastest route to a wrong helmet on a wrong job. Send us your headcount, Type and Class requirement, and any logo artwork, and we will quote it as one order, or apply as a distributor.

Frequently Asked Questions

What is the difference between a Type 1 and Type 2 hard hat?

Type 1 is tested for top impact only. Type 2 is tested for top and lateral impact, which covers falls, swinging loads and vehicle strikes. Choose Type 2 if anyone works at height or near moving plant.

What does Class E mean on a hard hat?

Class E is tested to 20,000 volts and is required for electrical work. Class G is tested to 2,200 volts. Class C offers no electrical protection, which includes all vented shells.

How often do hard hats need to be replaced?

Suspension every twelve months, shell every five years from the manufacture date stamped inside. Replace any helmet immediately after an impact.

Can you print our logo on hard hats?

Yes. We run custom logo printing on hard hats and safety helmets from a 12-piece minimum, in up to 4 colors, and we can quote it alongside a bulk order.

Are vented hard hats OSHA approved?

Yes for non-electrical work. Vented shells are Class C and carry no electrical rating, so they cannot be used where contact with energized conductors is possible.

Is a safety helmet better than a hard hat?

A Type 2 safety helmet with a chin strap and an energy-absorbing liner protects better against lateral impact and stays on during a fall. A traditional hard hat is lighter and cheaper. Match the choice to your actual hazards.
